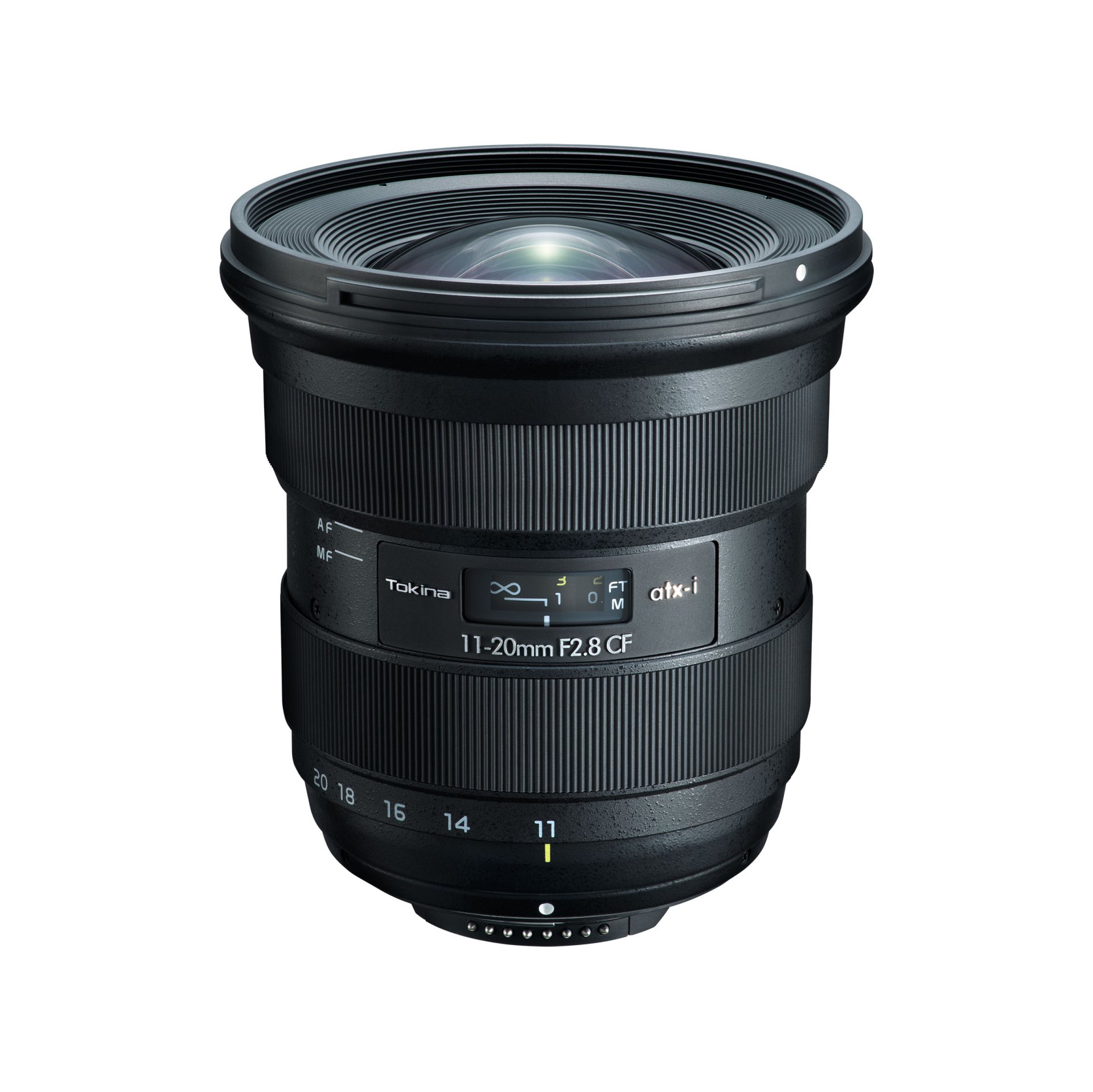

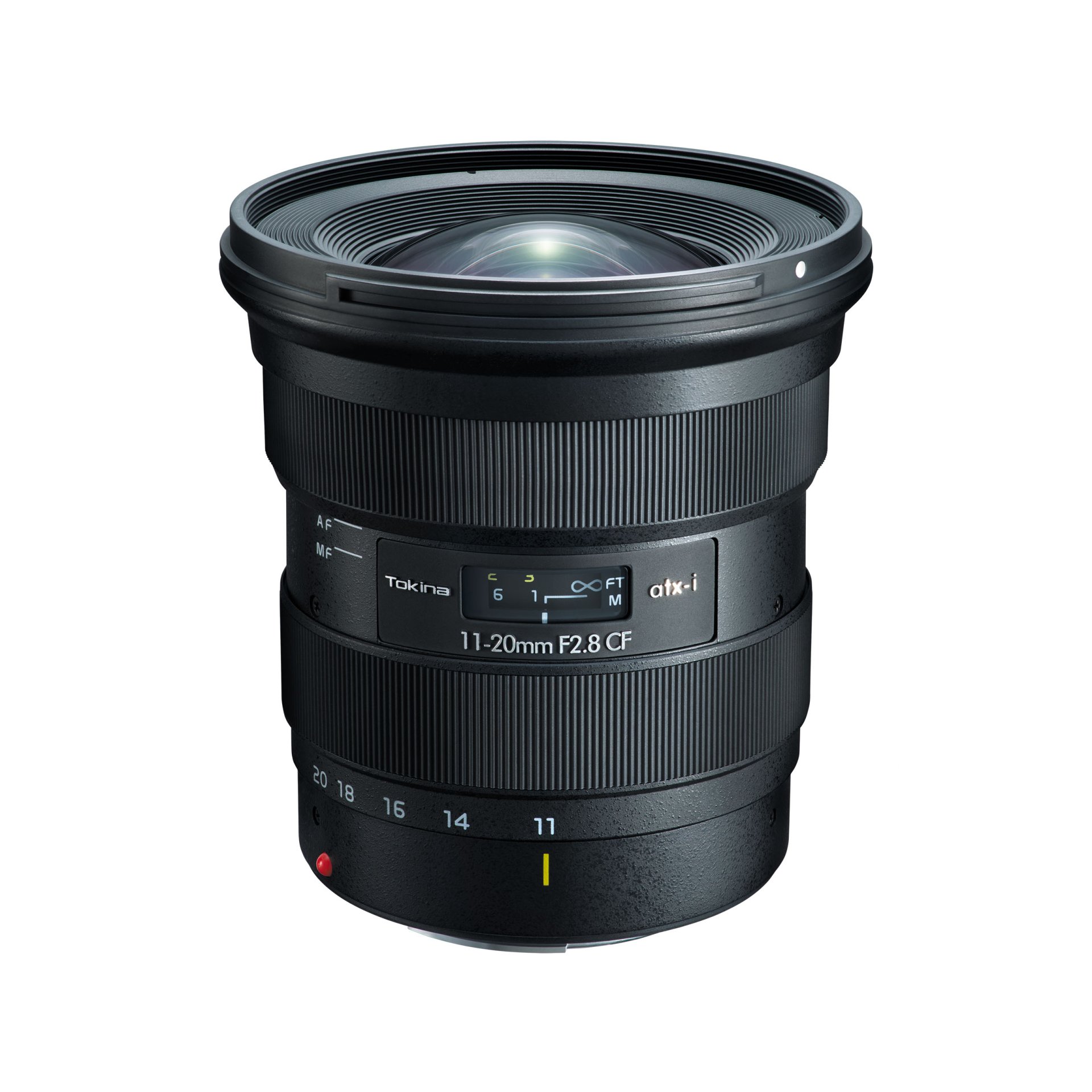

Tokina atx-i 11-20mm F2.8 CF


One lens for all wide angle photography — The Tokina atx-i 11-20mm F2.8 CF is designed as an ultra wide angle zoom lens for APS-C sensor DLSR cameras. It is the only f/2.8 fast ultra wide angle zoom lens for APS-C sized DSLR cameras in the current market*.


Brand : Tokina


About atx-i series

Leaving the honorable AT-X abbreviation, the letter "i" was newly added. "i" stands for "interactive", implying mutual communication between photographer and the lens. This is our believe that this series will provide a tight bond between photographer and the lens in order to capture in the image that the photographer sees around.

Exterior, specifications and performance of Tokina's popular and well acknowledged so far AT-X PRO lenses are reconsidered with the contemporary cameras in mind and launched under atx-i brand.

Product Overview

The Tokina atx-i 11-20mm F2.8 CF is designed as an ultra wide angle zoom lens for APS-C sensor DLSR cameras. It is the only f/2.8 fast ultra wide angle zoom lens for APS-C sized DSLR cameras on the current market*.

Focal length 11-20mm that covers equivalent angle of wide prime 18mm, 21mm, 24mm, 28mm lenses makes this lens attractive to be chosen after standard zoom lens or initially possessed wide angle zoom kit lens.

A constant maximum aperture of f/2.8 throughout the entire zoom range is realized to achieve great results in low light conditions, for depth of field control and easy manual shooting, while maintaining a reasonable size and weight.

* At present time April, 2020

Optical performance

To achieve an exceptional optical performance required for ultra wide angle zoom lens 3 aspherical glass elements and 3 Super-Low Dispersion glass elements were used in order to minimize distortion, manage spherical aberration and astigmatism while achieving excellent edge-to edge resolution and high contrast through the entire image.


Anti-reflective multi-layer coating improves light transmission and minimizes reflections while water-repellent coating makes wiping and cleaning the surface of the front glass element easier.

Built Quality & Exterior Design

Devoted to its traditions, Tokina incorporated a lot of metal parts inside the lens for a reassuring built quality and long time utilization in different shooting conditions.

The sophisticated exterior design is specifically developed to match the design of contemporary DSLR cameras.

Mechanics & Electronics

The Tokina atx-i 11-20mm F2.8 CF for Nikon F mount incorporates internal Silent-Drive focusing Motor (SD-M) in combination with precise GMR sensor to allow the lens to AF accurately and fast.

One-touch focus Clutch mechanism allows to switch between autofocus and manual focus easy.

The overall length of the Tokina atx-i 11-20mm F2.8 CF does not change when focusing and zooming thanks to internal type of the focus. Zooming mechanism inside the barrel allows using C-PL filters attached.

High-Light Features

  • Ultra-wide 11-20mm focal length
    Ideal for shooting landscapes, interiors, nightscape, group shots, weddings.
  • Constant maximum aperture of f/2.8
    Great performance in low light conditions, exceptional depth of field control and easy manual management. Valuable feature for still and video shooters.
  • Excellent optical performance
    Edge-to-edge sharpness, reduced flares and ghosting, excellent contrast. Improved optical resolution.
  • Improved AF accuracy by updating the firmware
  • Internal Focus
    No problems with lens balancing and using graduated or polarizing filters.

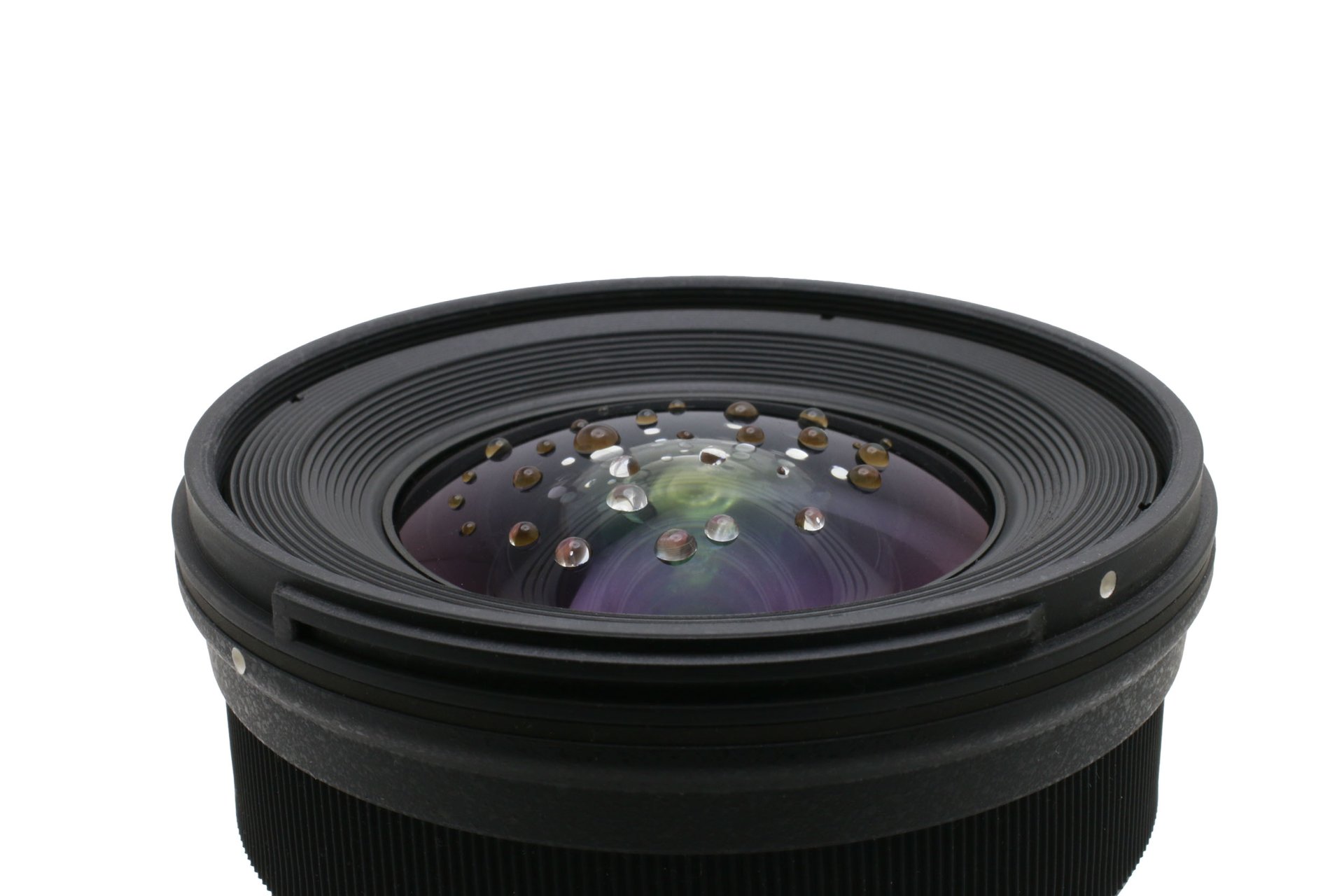

  • Water-repellent coating
    Easy to wipe and maintain the front element clean.
  • One-touch Focus Clutch mechanism
    Easy AF/MF switching without interruption of the shooting process.
  • Greatly balanced cost performance
    Reasonable pricing compared to high level of performance.

For Still Photography

Ultra-wide 11-20mm focal length, constant maximum aperture of f/2.8 makes this lens an essential tool for the following genres of photography: landscape, group photos and environmental portraits, architecture (especially interiors) automobile photography, weddings, street snap and night sky photography.

Photographer: Christophe Anagnostopoulos

Photographer: Kazuyuki Hagiwara

For Video Content Production

The Tokina atx-i 11-20mm F2.8 CF is suggested for videographers and film makers in mind who shoot both stills and video professionally, featuring the following advantages for such a kind of users.

  • Wide cinematic angle enough to feel confident in small places.
  • Minimized focus breathing – the subject framing does not show big change when focus is adjusted from near to far.
  • Natural footage - the image is not distorted when panning due to very low distortion performance.
  • Constant aperture to use full zoom range while you are filming.
  • Excellent optical performance.

Tokina atx-i 11-20mm F2.8 CF demo video

The Tokina atx-i 11-20mm F2.8 CF is a perfect match to use with gimbal.

  • Ideal wide angle fitting cinematic standards.
  • Light weight.
  • Zooming abilities that allow user to shoot in different angles using the same lens.
  • Since the overall length does not change thanks to internal type of focusing, there is no need to do gimbal calibration every time the angle of view was changed.
  • Great color rendering and resolution abilities.
  • Affordable price and high quality compared to really expensive cinema lenses.

General info

atx-i 11-20mm F2.8 CF
Model Description
Tokina atx-i 11-20mm F2.8 CF
Canon EF, Nikon F
Wide Zoom
Origin Country

Lens Specifications

Focal Length
Max. Aperture
Min. Aperture
Automatic Aperture
Manual Aperture Ring
Angle of View
Minimum Focusing Distance
Macro Ratio
Focusing Mode
Manual Focusing Ring
Autofocus Switch
Clutch Ring
Focusing Type
Internal Focus
Filter Size
Sensor Size


Contruction E/G
14 Elements in 12 Groups
Aperture Blades
Electrical Contacts

Additional info

89x92 mm (Nikon F)
89x94 mm (Canon EF)
550g (Nikon F)
570g (Canon EF)

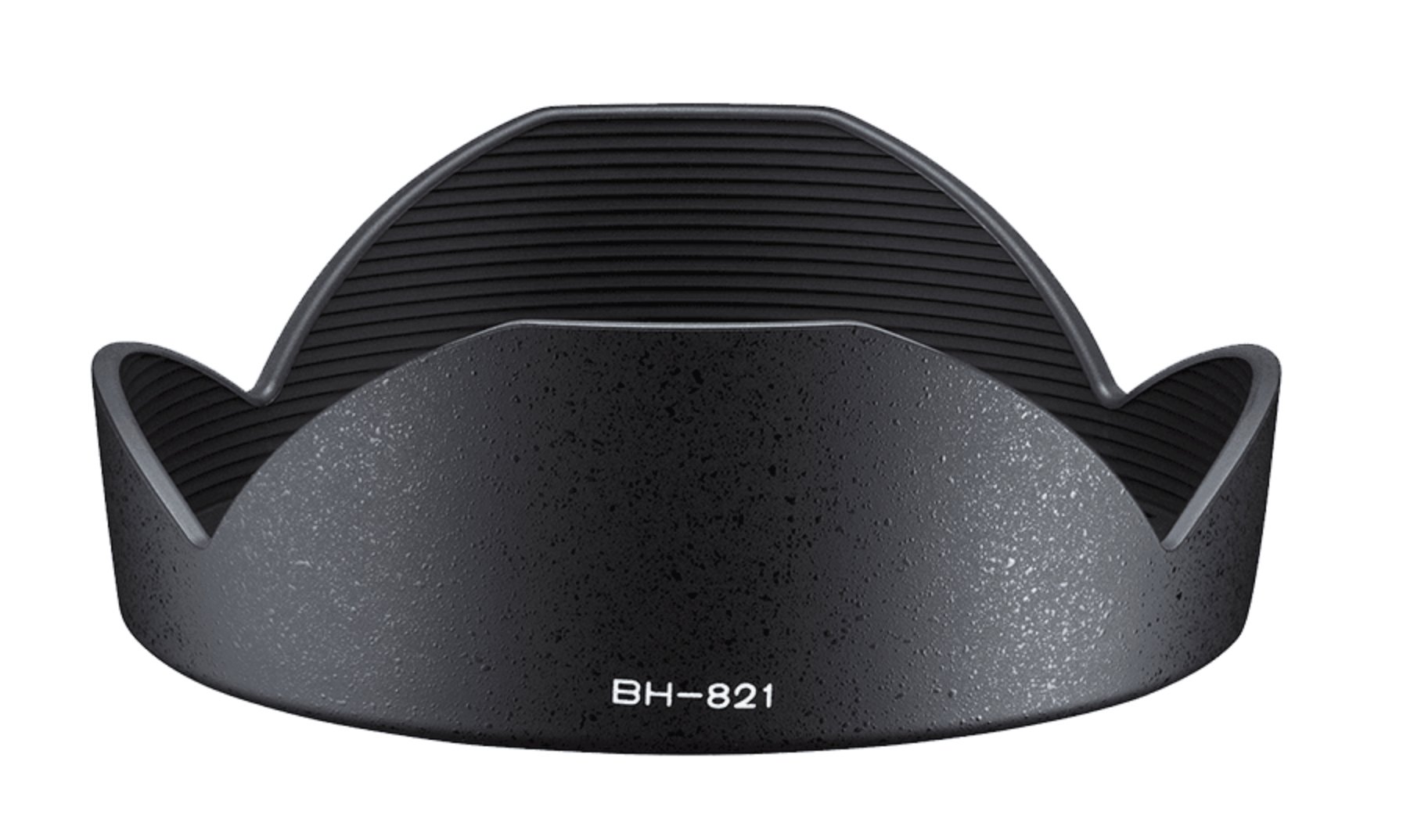

Lens Hood
Carton Box, Front Lens Cap, Instructions Manual, Lens Hood, Rear Lens Cap, Warranty Sheet
3 Year Limited Warranty
