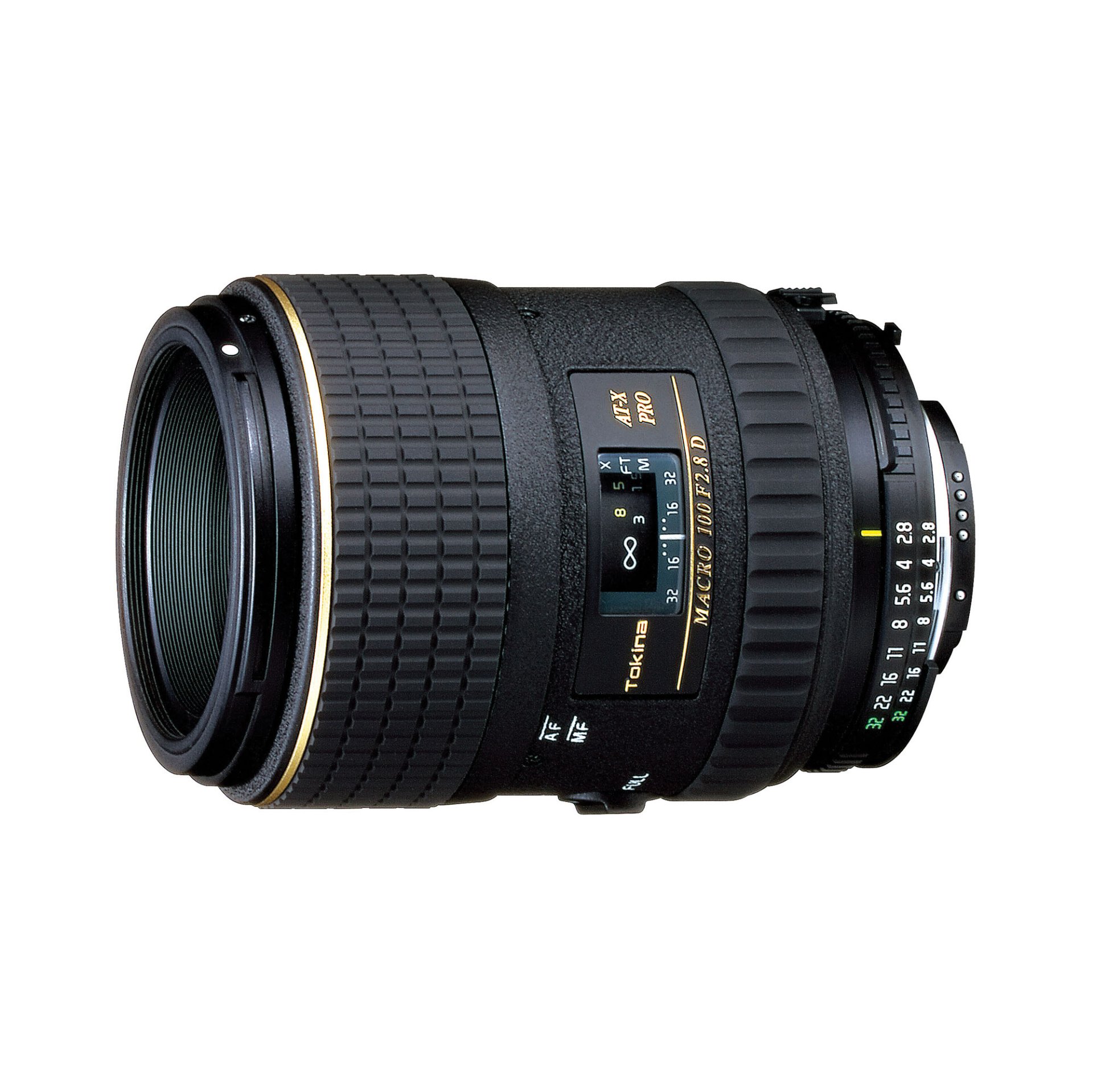

Tokina AT-X 100mm f2.8 PRO D

The AT-X 100 PRO D is a new macro lens capable of life-sized (1:1) reproduction at 11.8 in. (30 cm). The lens' multi-coating have been re-engineered to match the highly reflective silicon based CCD and CMOS sensors in today's digital SLR cameras. This lens gives the best of both worlds because optics still give full coverage and excellent sharpness on 35mm film. A macro lens that can handle both the digital and film worlds with ease.

The AT-X 100 PRO D also has a very convenient focus limiter switch that can lock the focus out of the closes focus making it focus faster when used as a moderate telephoto lens that is excellent portraits as well.

Other features of the AT-X 100 PRO D are:

Tokina One Touch Focus Clutch Mechanism for fast easy switching between manual and Auto focus.

55mm non-rotating filter thread for use with macro ring flashes and special effects filters.

The AT-X 100 PRO D also comes with a deep bayonet mounted lens hood.

Autofocus with this lens is not supported with Nikon DSLRs that do not have a focus motor in the camera body.

Pictures by the different lens of the focus system

Fig.1: Took a photo by Tokina AT-X M100 AF PRO D
A shape of the blurred light in the background has become the clean "circle".

Fig.2: Took a photo by an inner focus system lens

In this image, a shape of the light in the background has become like a rugby ball formed by lens vignetting.

"The auto focus speed than blur" is given priority, and almost macro lens are made by an inner focus system.

We would recommend you the Tokina AT-X M100 AF PRO D which has the beautiful blur by "the extending mechanism", if you seek more image description performance.

Aperture Ring setting at F32 (Nikon mount)

Tokina AT-X M100 PRO D for Nikon mount conforms to the specifications of "Ai AF-D" Nikon lenses.

When using with a Nikon DSLR camera or a film camera with CPU system, it is necessary to set the aperture ring to the minimum aperture value (F32).

To prevent accidental movements of the aperture ring from the minimum aperture value the ring can be locked in place with the small slide switch adjacent to the ring. (To release the lock, slide the lever to the opposite side.)

When setting the aperture value to F32 and then changing it by the dial on the camera, the aperture value displayed in the viewfinder will be other than F32.
At this time, the diaphragm blades do not move but will operate according to the aperture value displayed when shuttering.

Notes :
When set on other than the minimum aperture value (F32), the "FEE" error message flashes and the shutter cannot be released.　 　

Lens Constuction



MTF Chart
